NK300CX
NK300BX-V

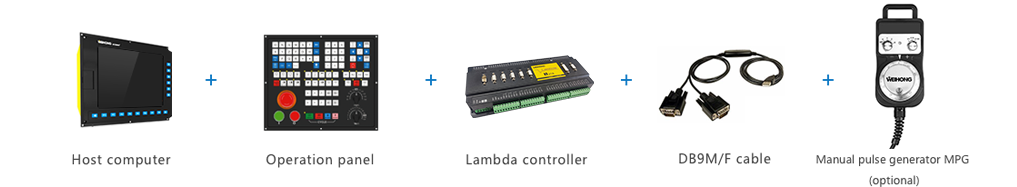

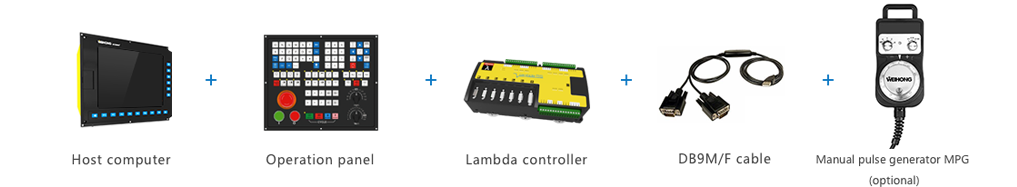

Product Configuration

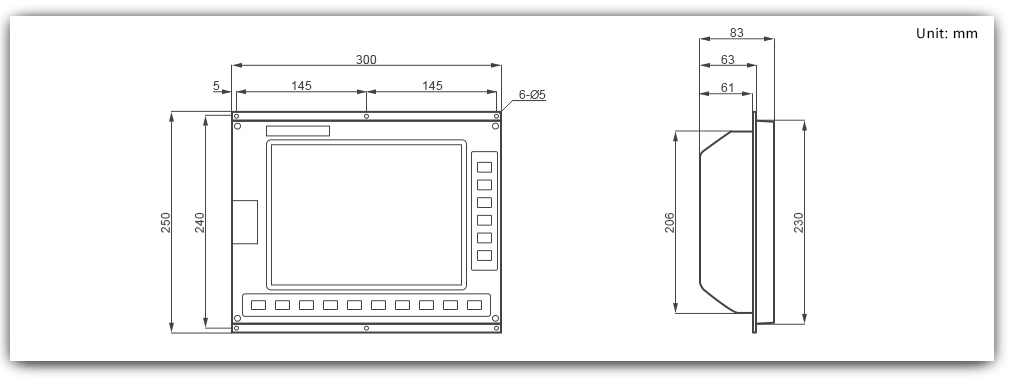

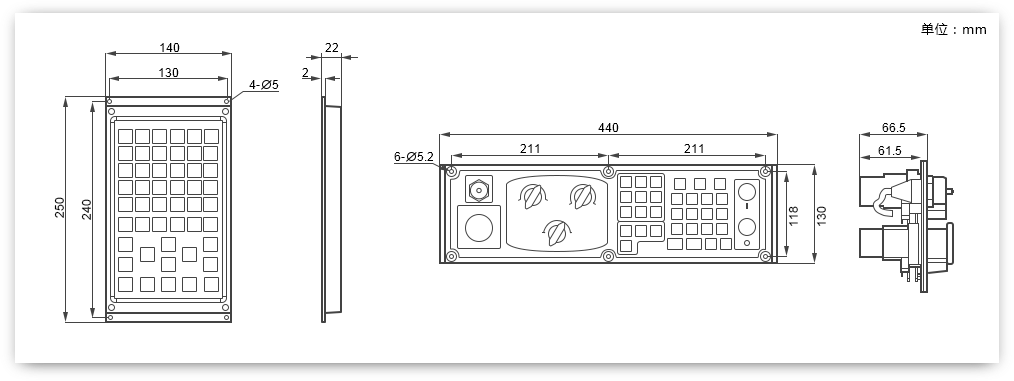

Mounting Dimension
Number of Axes Supported
3-5 axes
CPU
Dual cores
CPU Clock Speed
2.17GHz
RAM
2GB
Storage
60GB
Monitor Dimension
10.4
I/O
800×600（SVGA）
I/O
Standard: 28/8; Extended terminal board: 8/8(non-cascade connection),10/10 (cascade connection)
Performance Indicator
The product stands EMI/Electrical fast transient immunity/Surge immunity tests and conforms to the fourth grade protection standards of GB/T 17626.5-2008.
Resistance to vibration conforms to the GB/T 2423.10-2008 Standards.
The product stands rigid temperature tests and conforms to the industrial standards of GB/T 2423.102-2008.
Analog Voltage Output
0-10V
Tool Magazine
Linear tool magazine,Disk-type tool magazine
Tool Measurement Mode
Auto measurement,Manual measurement
Tool Measurement Type
Fixed calibration, Mobile calibration, First calibration & Calibration after tool change
Circular Interpolation
Three axes linkage
Three axes linkage
Compensation
Screw error compensation, Backlash compensation, AQE compensation, Tool compensation
Supported File Format
*.g；*.nc；*.ug;*.demo;*.iso;*.eng;*.cut;*.dxf;*.plt;*.txt
Internet(Ethernet)
LAN communication, Front USB interface, Two-way transmission between the system and PC
WCS Setting
Supporting WCS G54-G59 and 120 extended WCSs
Processing Technology
Array function, Mirror&rotate, Multi-layer machining, Cycle machining
Chinese,English
Interpolation Algorithms
S-type,LEP and Acceleration T-type algorithms
CNC Software Alarm
Alarms of program error, operation error, over-travel error, PLC error and IO communication error
