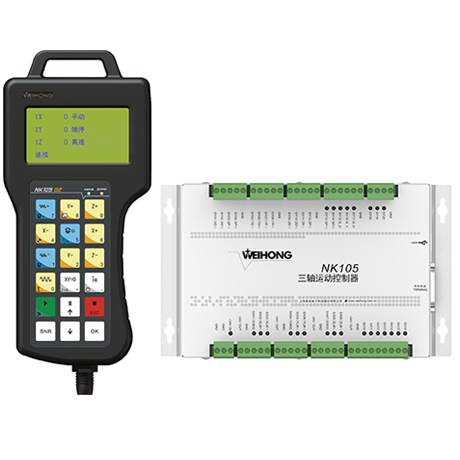

NK105G2
NK105G3
Product Configuration

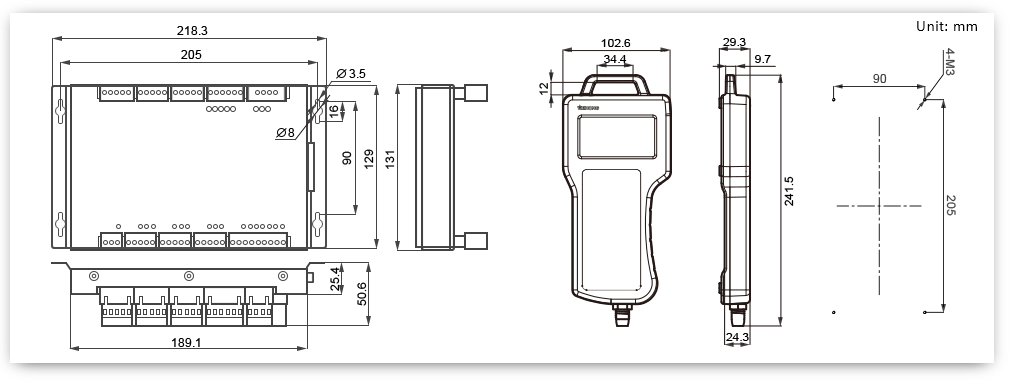

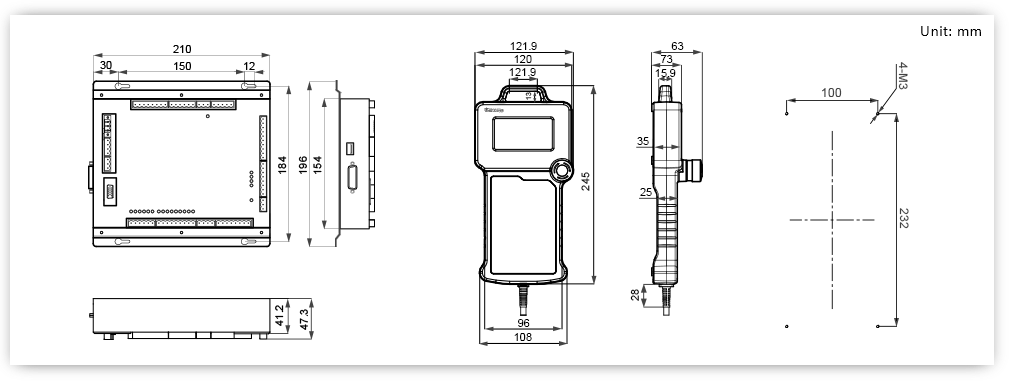

Mounting Dimension
Other Controls
Three axes with multiple cylinders
CPU
ARM11
RAM
128M
FLASH
256M
Monitor
128*64LCD display module
I/O
Standard
Performance Indicator
The product stands EMI/Electrical fast transient immunity/Surge immunity tests and conforms to the fourth grade protection standards of GB/T 17626.5-2008.
Resistance to vibration conforms to the GB/T 2423.10-2008 Standards.
The product stands rigid temperature tests and conforms to the industrial standards of GB/T 2423.102-2008.
Multiple Gears
8 gears of spindle speed
Tool Magazine Type
Linear tool magazine
Tool Measurement Mode
Auto measurement,Manual measurement
Tool Measurement Type
Fixed calibration, Mobile calibration, First calibration & Calibration after tool change
Compensation
Blacklash compensation
Supported
*.g/*.nc/*.u??/*.demo/*.iso/*.eng/*.cut/*.dxf/*.plt/*.txt
WCS Setting
Supporting WCS G54-G59
Processing Technology
Array function,Cycle machining
Convenitent Operations
Handwheel guide, Breakpoint resume, Tool selection
Interpolation Algorithms
T-type and S-type algorithms
Chinese, English, Polish, Vietnamese
CNC Software Alarm
Alarms of program error, operation error, over-travel error, PLC error and IO communication error
